TECH PACKS & CAD

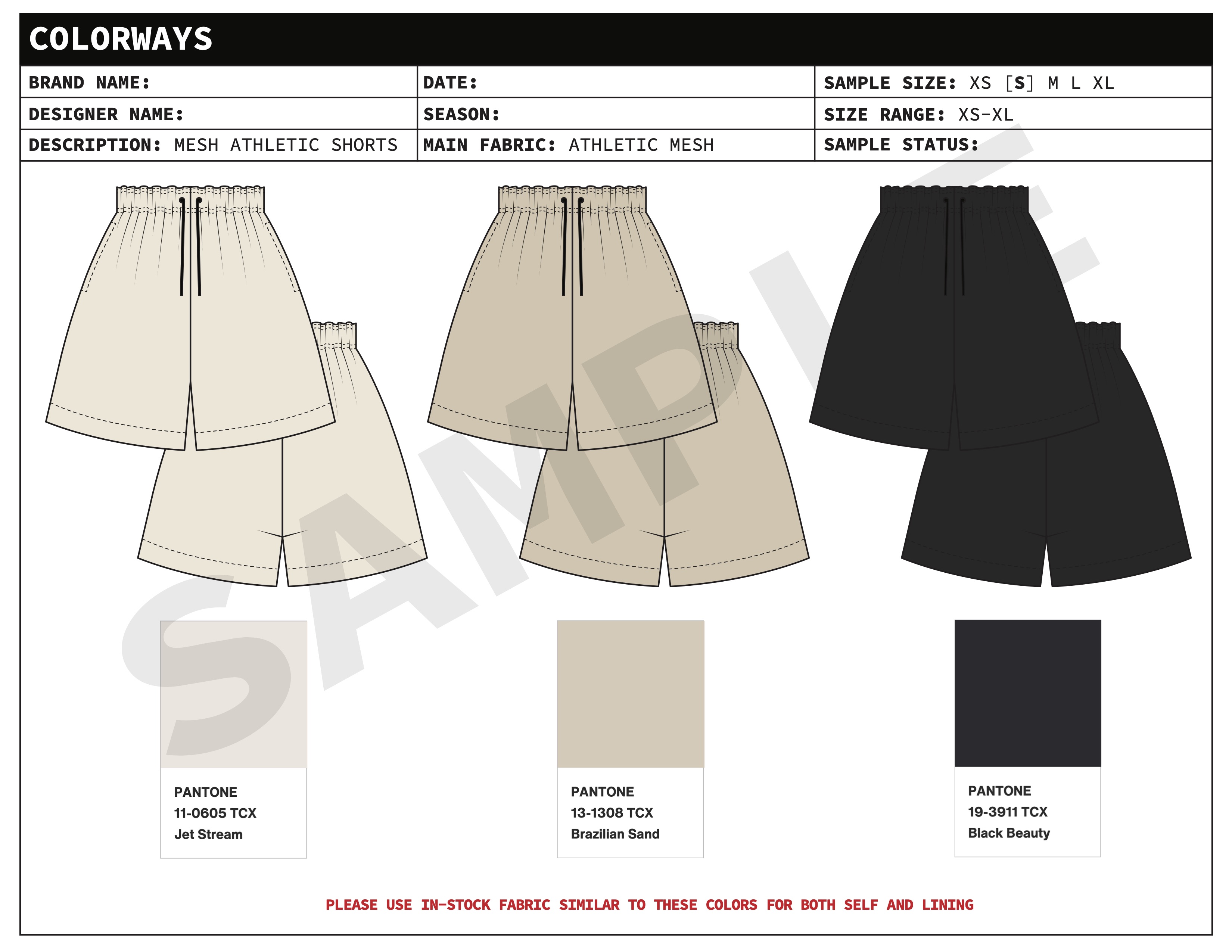

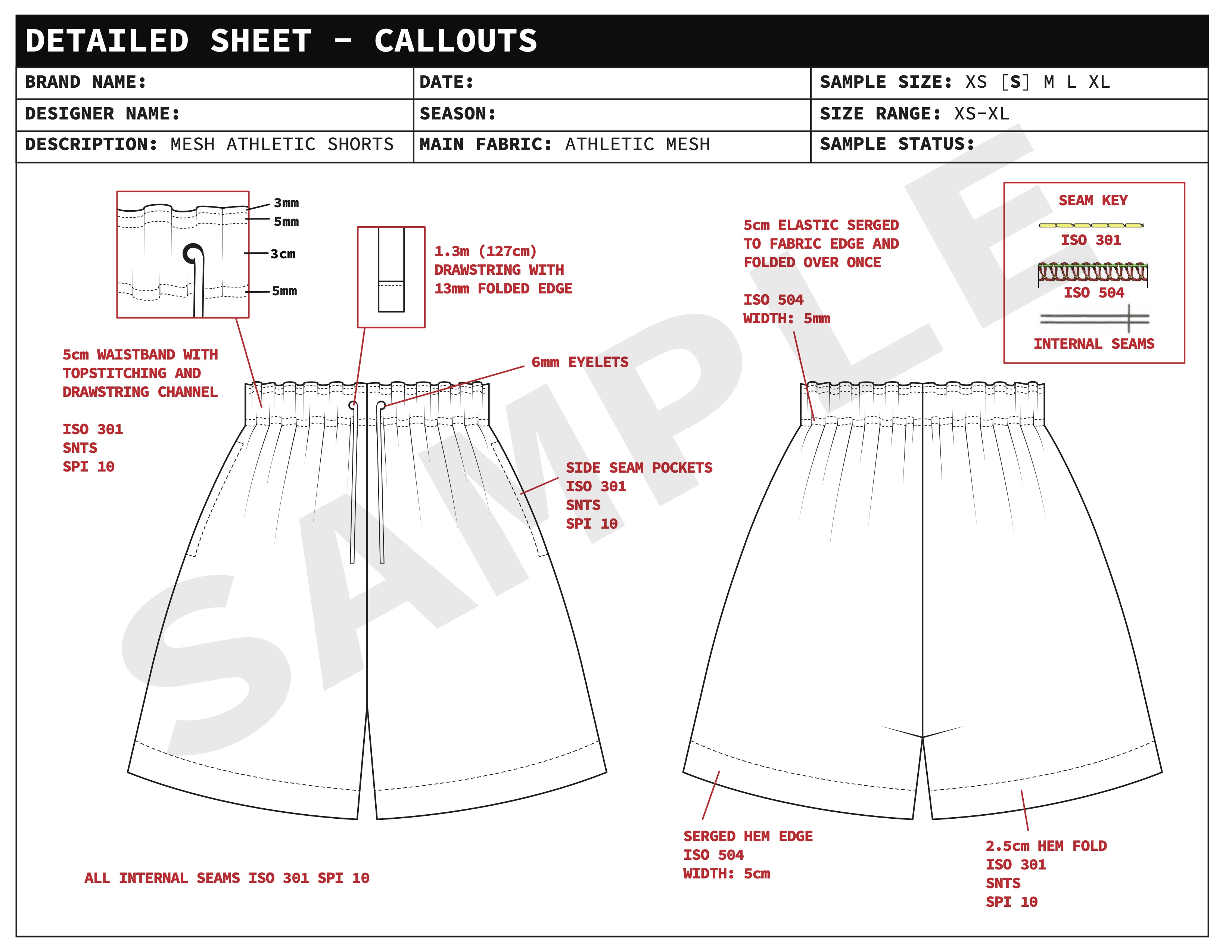

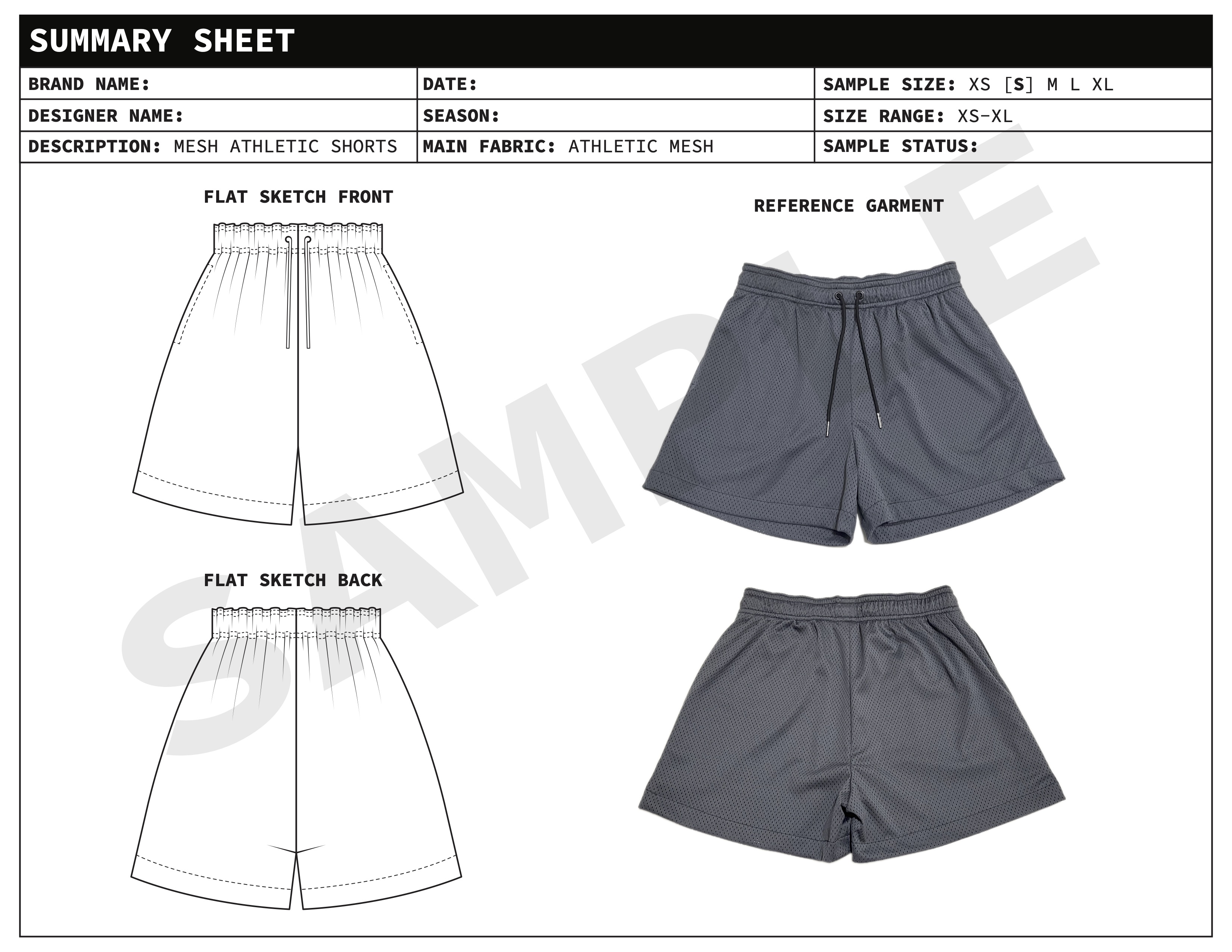

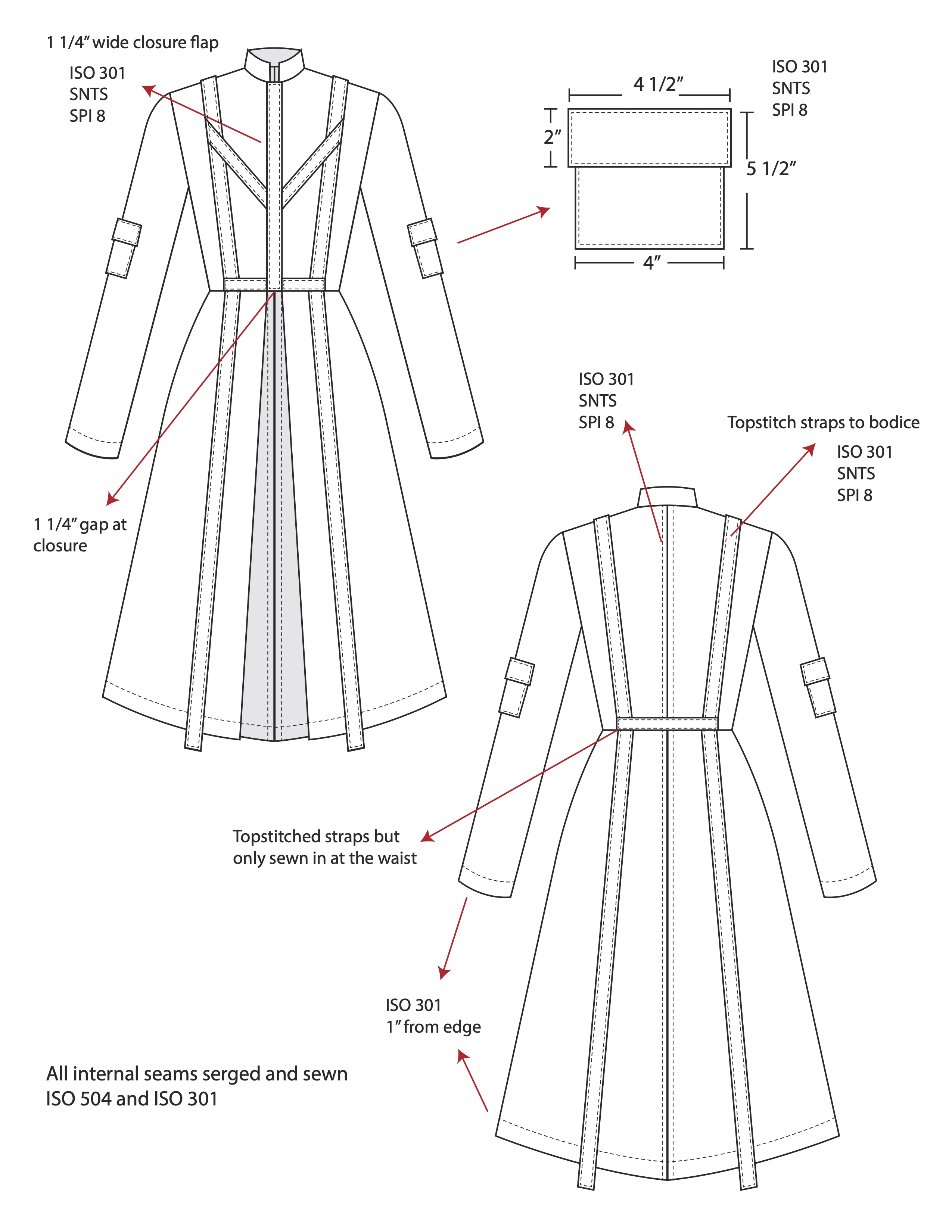

Sample tech packs, technical flats, and other computer aided designs

HOW-TO-MEASURE MANUAL

2025

To ensure consistency in measuring samples between vendors and the internal design team, I built a manual on how to measure each point of measure. I created a list of all POMs along with the POM name, description, the area of the POM, as well as a coding system to maintain organization within the doc and our Centric platform. After completing the list, I constructed a visual document in Adobe Illustrator with guided images to be used as reference.
